Chilled water buffer tanks stabilize chilled water systems and reduce chiller short-cycling in Dubai projects.
TL;DR:
- Best buffer tanks add water volume to chillers, cut compressor starts, and improve efficiency in hot climates like Dubai.
- They follow ASME or DNV approvals and come in carbon steel or stainless options.
- Size them using 22–38 litres per ton guidance and consider vertical or horizontal layouts.
What chilled water buffer tanks are and why they matter
These tanks store chilled water to stabilize system cycles and protect chillers.
Definition: A chilled water buffer tank holds extra chilled water volume to reduce short cycling and maintain setpoint stability. Examples: small 1000L tanks for plant rooms and 15m³ tanks for large data centers. Important: They can extend compressor life and reduce energy waste.
Specifications and standards
Dubai projects demand clear specs and recognized approvals for pressure vessels.
Common working pressures are 6 to 10 bar with design margins. Insulation typically uses rock wool with protective cladding to limit heat gain. For credibility, many suppliers list ASME and DNV approvals.
Materials and pressures
Carbon steel SA516 Gr70 is standard for chilled tanks in UAE.
Stainless steel appears where corrosion resistance is critical. Working pressure commonly equals 10 bar. Add internal baffles to limit sloshing and support thermal stratification. *Insulated, flanged inlets and outlets* improve efficiency.
ASME vs DNV approvals
ASME covers land-based pressure vessels; DNV applies to marine and offshore work.
Choose ASME for commercial buildings and DNV for offshore platforms and FPSO projects. For reference, see the ASME site ASME and DNV DNV.
Sizing and selection
Correct sizing prevents frequent starts and ensures stable cooling delivery.
Rule of thumb: use 22–38 litres per ton to estimate buffer volume. This range matches many chilled water system guidelines used in the UAE.
Litres per ton guidance
Start with 22 L/ton for systems with continuous loads.
Use up to 38 L/ton when loads are highly variable. Example: a 500-ton system at 30 L/ton needs a 15,000L tank. This simple formula helps engineers produce quick estimates during design reviews.

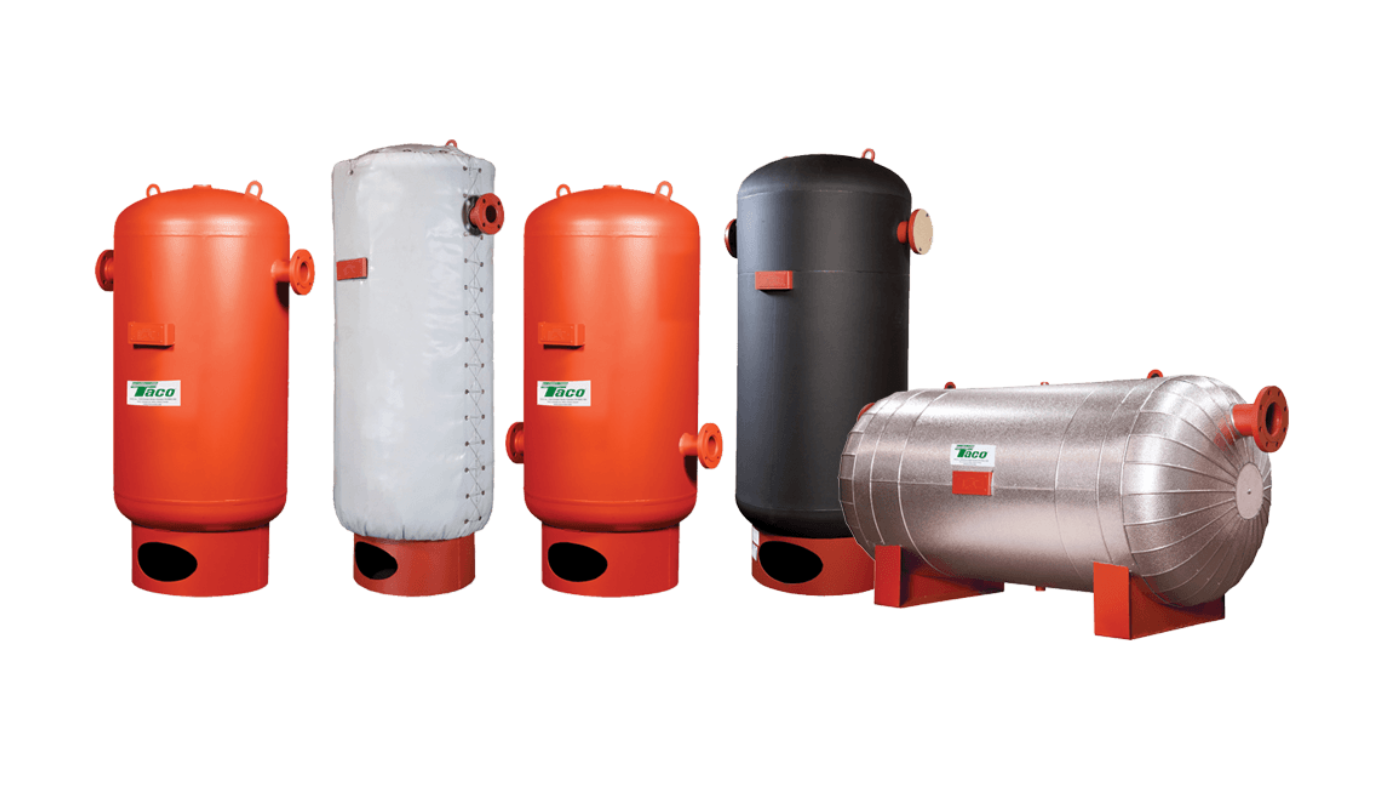

Vertical vs horizontal configurations
Vertical tanks save floor space and suit tall plant rooms in Dubai.
Horizontal tanks have lower height and fit low-clearance sites. The table below compares both types.
| Feature | Vertical | Horizontal |
| Footprint | Small | Large |
| Typical use | High-rise buildings | Plant rooms with low headroom |
| Transport | Requires lifting | Easier truck delivery |
Suppliers and local services in Dubai
Dubai has several local manufacturers offering custom insulated buffer tanks.
Hot Line Trading LLC supplies ASME and DNV insulated chilled water buffer tanks locally. You can view their product range and request quotes on their chilled water buffer tanks page: Hot Line Trading chilled water buffer tanks. Local suppliers typically provide fabrication, testing, and site delivery.
Installation and maintenance tips
Proper installation and routine checks keep tanks reliable over years.
Install tanks on level foundations and connect with flexible joints to prevent stress. Inspect insulation, cladding, and flanged connections every six months. Monitor system cycling and temperatures to detect stratification or air entrapment early. *Regular pressure testing and paint touch-ups extend service life.*
Cost and procurement notes
Prices vary by capacity, material, and approvals.
Smaller tanks (around 1000L) cost significantly less than 10m³ vessels. ASME or DNV certification adds cost but reduces approval risk on regulated projects. Ask suppliers for FAT documentation, hydro test certificates, and welding records when you request a quote.
These tanks store chilled water to stabilize system cycles and protect chillers.
Definition: A chilled water buffer tank holds extra chilled water volume to reduce short cycling and maintain setpoint stability. Examples: small 1000L tanks for plant rooms and 15m³ tanks for large data centers. Important: They can extend compressor life and reduce energy waste.
Summary
Chilled water buffer tanks play a simple role with big impact. They stabilize chilled water systems, lower compressor starts, and improve efficiency in Dubai’s hot climate. Use 22–38 L/ton for sizing, pick ASME or DNV approvals as required, and work with local suppliers like Hot Line Trading for tailored, insulated vessels. Careful selection and routine maintenance will keep systems reliable and energy efficient for years.
These tanks store chilled water to stabilize system cycles and protect chillers.
Definition: A chilled water buffer tank holds extra chilled water volume to reduce short cycling and maintain setpoint stability. Examples: small 1000L tanks for plant rooms and 15m³ tanks for large data centers. Important: They can extend compressor life and reduce energy waste.
FAQ
How many litres per ton does a chiller need?
Use 22–38 litres per ton as a practical guideline for chilled water systems.
Will a buffer tank stop compressor short-cycling?
Yes. A buffer tank adds volume and reduces starts to within recommended limits.
Do I need ASME certification for Dubai buildings?
ASME is common for commercial projects, but check client and authority requirements.
Can buffer tanks be insulated for Dubai heat?
Yes. Rock wool insulation with cladding is standard to limit heat gain.
Are vertical tanks suitable for rooftop installations?
They are suitable when structural support and lifting access exist.
